Our latest sheet metal punching machine is the servo-electric driven AE 2510 from Amada. This beast has the largest working range in its class, enabling high-speed metal punch operation on large-size metal sheets.

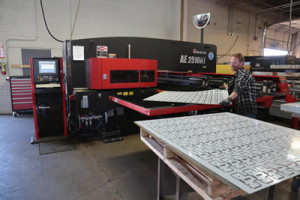

Sheet metal punch in useThe servo-electric drive also means extremely low power consumption compared to other punch machine designs in this class. The Amada AE2510 is quickly becoming legendary in the sheet metal fabrication industry.

At C&D, we particularly appreciate the ease of use and speed with which we can set up jobs, and the intuitive safety features that help keep our personnel safely productive.

 AE-2510 NT Specifications
Punch power 200 kN
Working range (X x Y) 1270 x 2500 mm
Working range (X x Y) with repositioning 1270 x 5000 mm
Max. material thickness with Brushtable (standard 3.2 mm
Max. material thickness with High density brush table (option) 6.4 mm
Tool stations 51, of which 4 are rotatable
Max. tool diameter 88.9 mm
Dimensions AE-255 NT AE-2510 NT
Length (L) 4100 mm 4165 mm
Width (W) 2560 mm 5120 mm
Height (H) 2082 mm 2082 mm

Stop on by and check out our latest additional on our production floor. You’ll be amazed with the speed and design of this machine!
