C&D has procured Amada’s newest laser cutting machine, the Amada LCG 3015 which is now deployed and functioning at our Northglenn, Colorado manufacturing facility.
We always try to keep the latest equipment available for our customer projects. We maximize speed and efficiency when we are able to leverage the latest sheet metal fabrication technologies and tools.

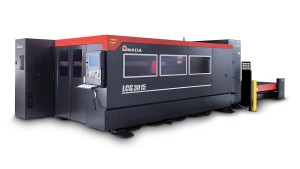

Amada LCG 3015
| Motion Package |
| Travel Method |
Material remains stationary. X, Y and
Z-axis movement |
| Control Method |
X, Y and Z simultaneous 3-axis control |
| Drive motors |
Fanuc AC servo motors |
| Max. Sheet Size (X and Y) |
120″ x 60″ |
| Max. Axis Travel (X, Y, Z) |
121″ x 61″ x 3.93″ |
| Max. Axis Positioning Speed (X, Y) |
4,724″/min. per axis (6,693″/min. 45″ vector) |
| Max. Speed Z-Axis |
4,724″/min. |
| Repeatability |
±0.0002″ |
| Max. Material Weight |
2,000 lbs |
| Assist Gas |
4 ports with NC pressure control |
| Electrical Requirements |
200V, 3-Phase, 60Hz |
|
| Fiber Laser Resonator |
| Model |
2kW – 4kW – 6kW |
| Resonator Style |
LD excited Yb fiber |
| CW Output Power |
2kW – 4kW – 6kW |
| Peak Pulse Output Power |
2kW – 4kW – 6kW |
| Power Stability |
± 2% |
|
